Main Features:
1) With reference to the advantages of congener products from home to aboard,can meet the demands of different position on operation
2) 24v battery that meets the operating demands for one week,better ensure the table work under safe voltage
3) electromotion facilitated the various adjustment of position,intellectualized reposition enables the table a quick return to horizontal position automatically lockable remote control in case of wrong operation
4) Large-scale elevation makes it easier for C-arm fluoroscope examination with build-in kidney bridge ,suits for kidney operation

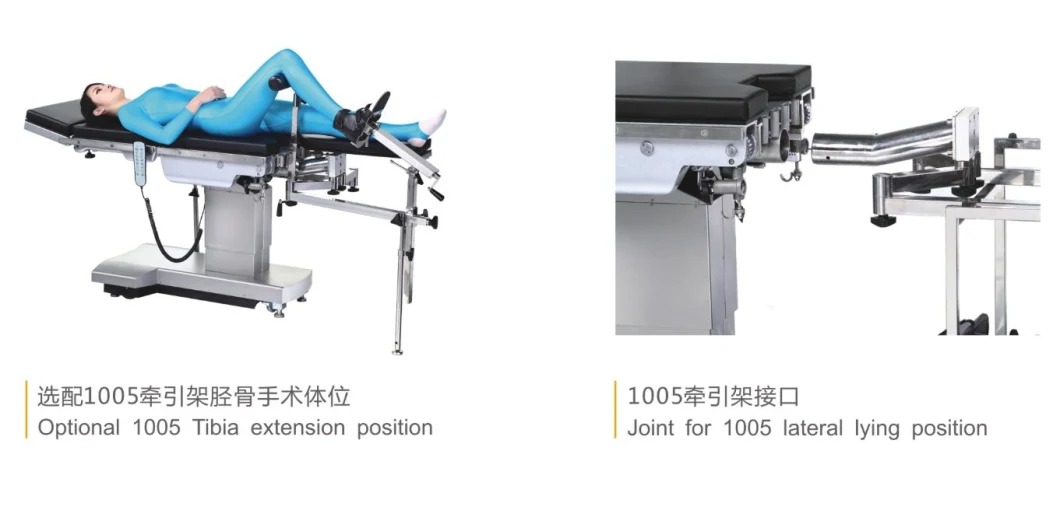

5)optional traction for orthopedics ,head rest for aural surgery ,extend functions of the table .the cover all adopted premium 304 stainless steel ,the main body used cast aluminum,anti-rust and corrosion the table top adopted phenol aldehyde photograph board which is suitable for x-ray
Parameter Introduction:
| Main Technical | |||||||
| Model | Length | Width | Tabletop lowest height | Elevation Range | |||
| ET700 | >=1960mm | 500mm | >=690mm | 400mm | |||
| Movements | |||||||
| Tabletop trendelenburg | Reverse Trendelenburg | ≥ 28° | |||||
| Trendelenburg | ≥ 28° | ||||||
| Lateral Tilt (Left and Right ) | ≥ 18° | ||||||
| Head plate | Up | ≥ 60° | |||||
| Down | ≥ 85° | ||||||
| Back plate | Up | ≥ 85° | |||||
| Down | ≥ 40° | ||||||
| Leg plate | Up | ≥ 15° | |||||
| Down | ≥ 90° | ||||||
| Outward | ≥ 90° | ||||||
| Horizontal Sliding | >=340 mm | ||||||
| Kidney Bridge up | 100mm | ||||||
| Standard Configuration | |||||||
| mattress | 1set | ||||||
| Leg support | 2 pieces | ||||||
| Arm support | 2 pieces | ||||||
| Shoulder support | 2 pieces | ||||||
| Body support | 2 pieces | ||||||
| Anesthetic screen | 1 pieces | ||||||
| Head plate | 1 pieces | ||||||
| Leg plate | 2 pieces | ||||||
| Foot plate | 2 pieces | ||||||
| Fixing clamp | 2 pieces | ||||||
| Detailed Packing : Size:(L×W×H)1300mm×750mm×1020mm G/W:306 kg N/W:263kg | |||||||
